150LM SMD3030 20 Watt LED Module Strip CE RoHS FCC Certifications

Product Categories
Guangzhou Mankun Electronic Co., Ltd.
Contact Now

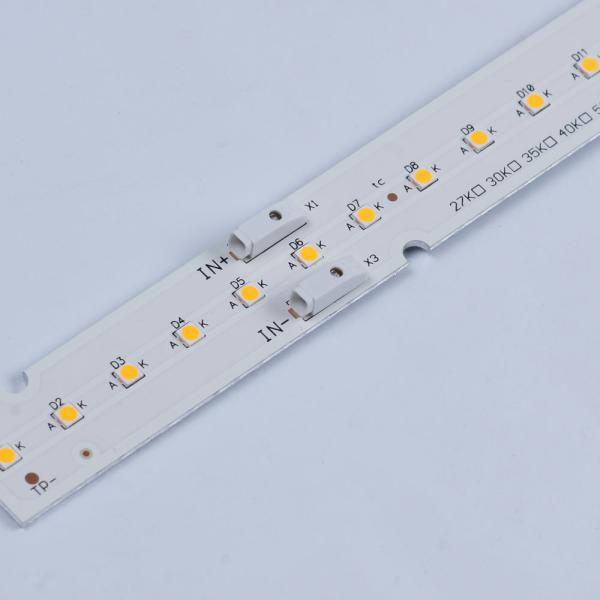

150LM SMD3030 20 Watt LED Module Strip CE RoHS FCC Certifications

Place of Origin : Guangdong, China

Brand Name : mankun

Certification : ce, RoHS

Packaging Details : LED module bubble packaging, 10PCS each box, 100PCS a box

MOQ : 1000 Sets

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 20000 Piece/Pieces per Day

Delivery Time : 5-8 work days

Input Voltage(V) : DC 36V

Warranty(Year) : 3-Year

Luminous Efficacy(lm/w) : 140

Luminous Flux(lm) : 120

Power : 20 Watt

Power Dissipation : 95%

Color Rendering Index(Ra) : 80

LED QTY : 24PCS led chip

Contact Now

150LM SMD 3030 20 Watt LED Module Strip CE RoHS FCC Certifications

150LM Smd3030 20 Watt Indoor Lighting Linear LED Module CRI > 80Ra

Features and benefits:

  • Ideal for linear and panel lights

  • Optional PH2.0 or 2060 Terminal Block

  • Quite easy to connect and remove the conductors.

  • Perfectly uniform light, even if several LED modules are used together

  • Designed for variety of general lighting applications with high efficiency level, surpassing T5

  • High color redering index >80

  • High system efficacy up to 158 lm/w

  • Long life-time of 50,000 h and 3-year system guarantee

  • CE RoHS FCC certifications

Application & Electrical specs

  • LED Chip: SMD2835 / 5730 , 60 Lm/LED

  • LED Power: Max 150mA/LED; 0.5W/LED

  • Colors: CW5800~6250K, WW2800~3200K, NW3800~4250K

  • Waterproof Rating: IP20

  • Size: 560mm length, 20mm width

  • Type: 24/48LEDs, 11/17W, 1320/2180 lm

  • Operating Temperature: -40~50 °C (PCB /Tc < 75 °C)

  • Input voltage: DC22~25V

  • Life-Span: >50000hours Tc< 75 °C, I<150mA /LED

Product details

CRI

CCT K

Current mA

Flux Tc 250C lm

Flux Tc 650C LM

Power Tc 650C W

Efficacy Tc 250C lm/W

Efficacy Tc 650C lm/W

lpk mA

Vmin. Tc 250C @lmin

Vmax. Tc 250C @lmax

80

3000

300

2912

2868

22.4

130

128

800

72

74.4

390

3638

3580

29.1

125

123

450

4054

4020

33.5

121

120

4000

300

3136

3114

22.4

140

139

390

4016

3929

29.1

138

135

450

4489

4355

33.5

134

130

5000

300

3136

3114

22.4

140

139

390

4016

3929

29.1

138

135

450

4489

4355

33.5

134

130

The mentioned data can have a 10% tolerance.

Specification

150LM SMD3030 20 Watt LED Module Strip CE RoHS FCC Certifications 150LM SMD3030 20 Watt LED Module Strip CE RoHS FCC Certifications

150LM SMD3030 20 Watt LED Module Strip CE RoHS FCC Certifications
